DPD Manager

Features DPD Manager

DPD three phase monitor relay are supplied with factory settings for the alarms and the thresholds.
If the factory settings are not suitable for own use the DPD Configurators allows to set own parameters and to send them to the relay once finished.

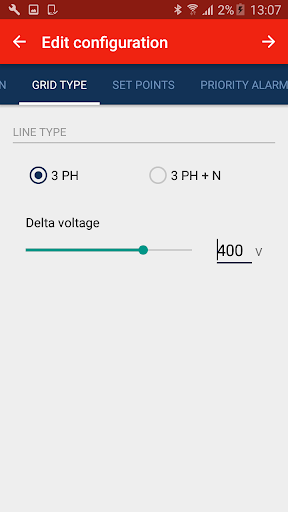

Parameters that can be set are: SYSTEM - Grid type - Rated mains value ALARMS - Phase loss threshold - Neutral loss threshold SETPOINTS - Overvoltage - Undervoltage - Overfrequency - Underfrequency - Asymmetry For each one of the setpoints it is possible to set a delay ON and / or a delay OFF, and the hysteresis value.
The Setpoint can be associated to the required output among the 2 available either directly or through AND-OR operators.

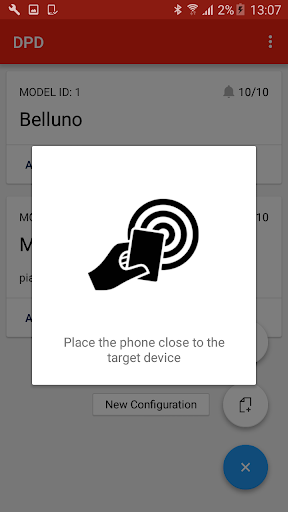

Once the configuration it has been prepared it can be sent to the relay to be configured.
DPD Configurator also allows to download the configuration from one device and sending it to another one as it is or modified.
The downloaded configurations can be stored on the telephone or tablet.
The configuration locking is also possible by introducing a 4 digit password to avoid device configuration tampering.
It is possible to change the language to: ENGLISH ITALIANO DEUTSCH ESPANOL FRANCAIS DANSK 中文
